PF 1.0 Elite Rack/Tower UPS 6–10 kVA
High-efficiency online double-conversion VFI rack/tower UPS for 6–10 kVA applications. RM11E Elite combines 3-Level IGBT technology, full digital control, PF 1.0 output (kW = kVA), wide 110–300 Vac input, low THDi ≤3%, online efficiency up to 95.5% and ECO efficiency up to 98%. Designed for servers, network switches, telecom shelters, edge IT and data-center loads, with dual intelligent slots for optional SNMP / Modbus-TCP and relay cards, RS-232 / RS-485 / USB and EPO, and N+X parallel redundancy up to 4 units. CE / LVD, EMC and IEC/EN 62040 standards by model.
Engineered for Reliability
High-end online double-conversion topology, 3-Level IGBT inverter, dual intelligent slots and parallel-capable models for server rooms, telecom shelters and edge IT environments.
3-Level IGBT Topology
Online double-conversion VFI topology with 3-Level IGBT inverter and DSP control delivers PF 1.0 output, pure sine-wave power and zero transfer time for critical loads.
2U / 4U Rack/Tower Design
2U chassis for models without internal batteries and 4U chassis for models with internal battery space. Rotatable LCD supports rack or tower installation.
Up to 95.5% Efficiency
Up to 95.5% online efficiency on selected 10 kVA models; ECO mode reaches up to 98% under stable utility conditions.
Dual Intelligent Slots
Dual intelligent slots support optional SNMP / Modbus-TCP and relay cards for remote monitoring, event alerts and dry-contact signalling.
Parallel-Capable Models
6 kVA and 10 kVA models support parallel operation up to 4 units for capacity expansion or N+X redundancy, subject to model and configuration.
Low-Noise Operation
Low-noise operation: under 45 dB at 1 m on 6 kVA models and under 50 dB at 1 m on 10 kVA models. Suitable for server rooms and office-adjacent IT areas.
Expand Your System
Optional accessories for runtime extension, remote monitoring, rack installation and maintenance bypass support. Availability depends on UPS model, voltage and project configuration.

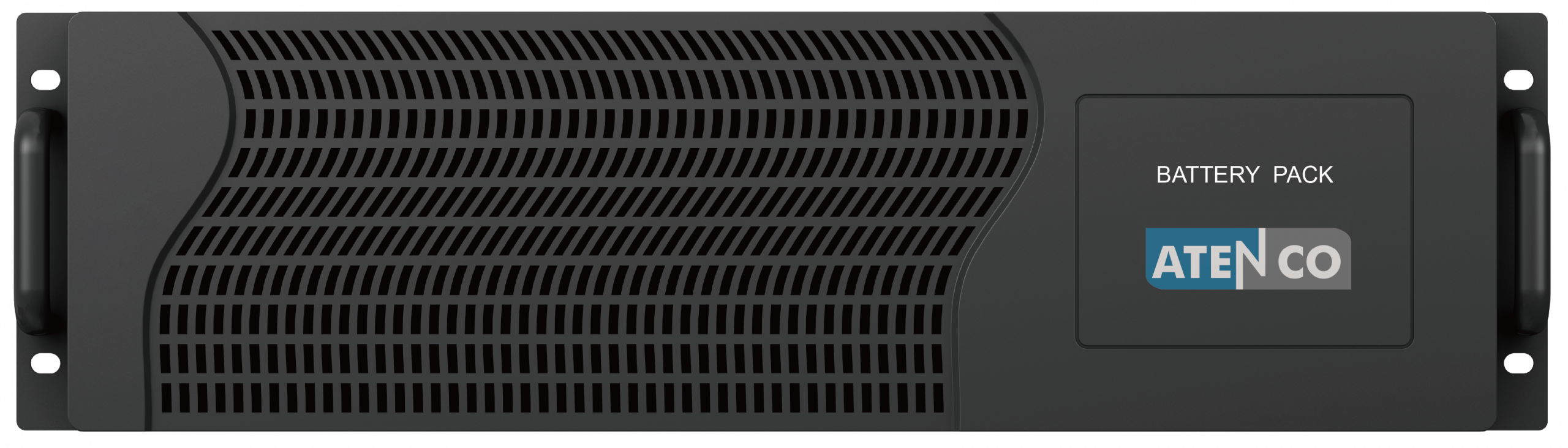

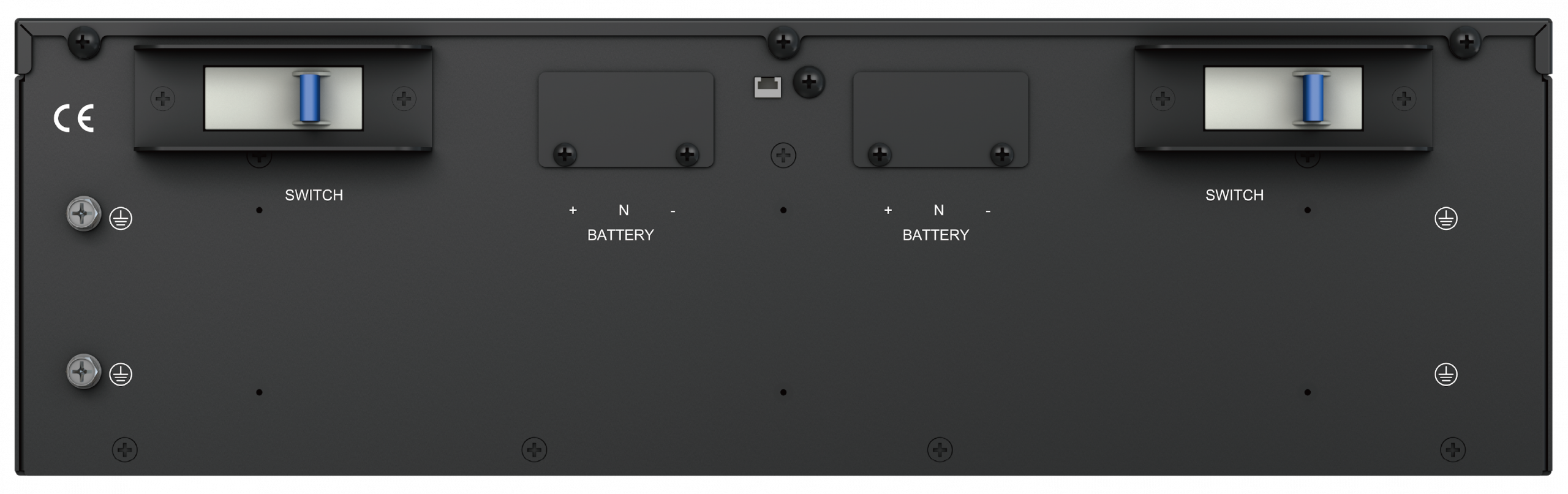

External Battery Cabinets
RC16192EL rack battery cabinet for RM11E Elite 6–10 kVA models, 3U / 192 Vdc / 16 × 12V 9Ah. RC16192EL-B version is supplied with batteries pre-installed. Final cabinet selection depends on UPS model and runtime target.
SNMP Network Card
Optional TM220 intelligent-slot SNMP card for remote monitoring via SNMP, web interface and email alerts. Dual intelligent slots allow SNMP / Modbus-TCP and relay-card combinations by configuration.

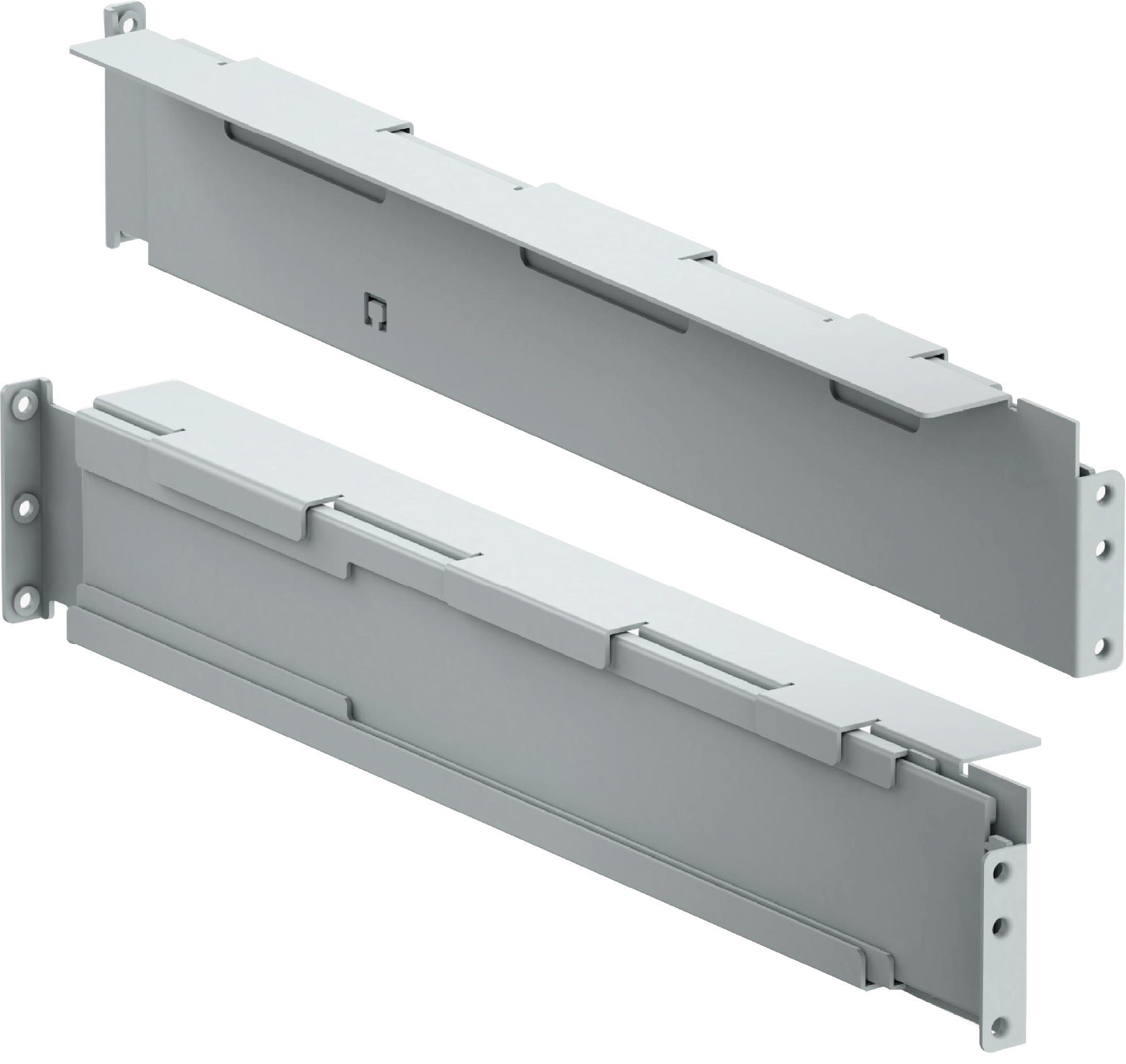

Rack Rail Kit
Adjustable 19″ rack-mount rails, 700–760 mm depth, for secure RM11E Elite installation in standard server racks.
Maintenance Bypass PDU
External RM11E-PDU9300E maintenance bypass PDU supports UPS service or replacement while maintaining load supply, when installed according to procedure. Compatibility depends on UPS model and site wiring.
RM11E Elite Technical Details
Complete specifications for the RM11E Elite 6–10 kVA rack online UPS series.
| Specification | 6 kVA | 10 kVA |
|---|---|---|
| Full Name | RM11E Elite Rack Online UPS | |
| Topology | Online Double-Conversion (VFI), 3-Level IGBT, DSP Control | |
| Phase | 1P–1P (Single Phase In / Single Phase Out) | |
| Form Factor | 2U Rack (no battery) / 4U Rack (with battery) / Tower Convertible | |
| Capacity | 6000 VA / 6000W | 10000 VA / 10000W |
| Output Power Factor | 1.0 (kW = kVA) | |
| Display | 2.4” LCD (optional 3.5” rotatable HMI) | |
| Operating Modes | Online, ECO, Generator, Converter, Battery, Bypass | |
| Parallel | Up to 4 units (N+X redundancy, optional parallel kit) | |
| Intelligent Slots | 2× intelligent slots for TM220 SNMP, relay, Modbus-TCP options | |
| Standards | IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3 | |
| Specification | 6 kVA | 10 kVA |
|---|---|---|
| Input Voltage Range | 110–300Vac (176–300V at 100% load; 110–176V at 50%) | |
| Input PF | ≥0.99 | |
| Input THDi | ≤3% | |
| Input Frequency | 40–70Hz (50/60Hz auto-sensing) | |
| Input Connection | Hardwired terminal (L+N+G) | |
| Output Voltage | 208/220/230/240Vac selectable, ±1% regulation | |
| Output PF | 1.0 (kW = kVA) | |
| Output Frequency (online) | ±1%/±2%/±4%/±5%/±10% of rated | |
| Output Frequency (battery) | 50/60Hz ±0.1% | |
| THDv | ≤1% linear / ≤3% non-linear | |
| Transfer Time | 0ms (AC→Battery); 0ms (Inverter→Bypass) | |
| Crest Factor | 3:1 | |
| Waveform | Pure Sinewave | |
| Efficiency (Online) | Up to 95% | Up to 95.5% |
| Efficiency (ECO) | Up to 97.5% | Up to 98% |
| Programmable Outputs | C19×2 + C13×3 (load shedding capable) | |
| Specification | 6 kVA | 10 kVA |
|---|---|---|
| Battery Type | 12V 9Ah VRLA (ATN1209); LiFePO4 lithium optional | |
| Chemistry | Sealed Lead-Acid (VRLA) or LiFePO4 lithium, by configuration | |
| VRLA Bus Voltage | 192 / 216 / 240Vdc (settable: 16/18/20 pcs × 12V) | |
| Lithium Bus Voltage | 192Vdc | |
| Internal Battery (4U chassis) | Up to 16 × 12V/9Ah = 192Vdc | |
| Recharge Time | 4 hours to 90% (typical) | |
| Max Charging Current | 8A | 10A |
| Charger Type | Smart 3-stage (auto-adapts to battery type) | |
| Battery EOL Threshold | 1.67V/cell | |
| Battery Life | 3–5 years at 25°C (application dependent) | |
Compatible Battery Cabinets (VRLA)
| Model | Battery Configuration | System Voltage | Dims (W×D×H) | Net Weight (7Ah / 9Ah) |
|---|---|---|---|---|
| RC16192EL / RC16192EL-B | 16 × 12V VRLA (7Ah / 9Ah) | 192 Vdc | 440 × 671.5 × 131 mm (3U) | 48 kg / 53 kg |
| RC20240N-EL / RC20240N-EL-B | 20 × 12V VRLA (7Ah / 9Ah) | 240 Vdc | 440 × 671.5 × 131 mm (3U) | 58 kg / 63 kg |
Note: “-B” models ship with batteries installed; “N” denotes a neutral connection. Weights are for the populated cabinet (7Ah / 9Ah). For an empty cabinet, deduct 2.0 kg per 7Ah battery or 2.35 kg per 9Ah battery.

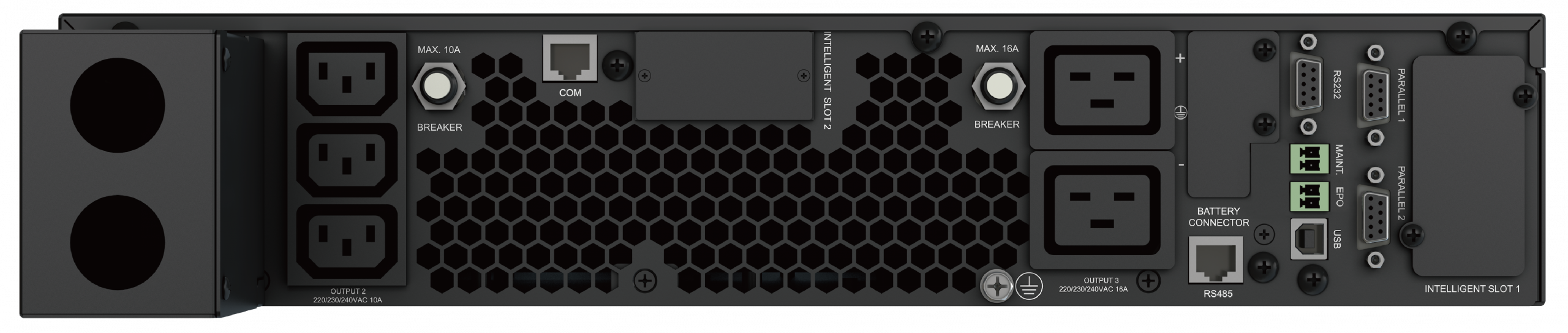

2U Chassis (no internal battery)
| Specification | 6 kVA | 10 kVA |
|---|---|---|
| Form Factor | 2U Rack / Tower Convertible | |
| Dimensions (W×D×H) | 440×621.5×86.5mm | |
| Weight | 15.4kg | 17kg |
4U Chassis (with internal battery space)
| Specification | 6 kVA | 10 kVA |
|---|---|---|
| Form Factor | 4U Rack / Tower Convertible | |
| Dimensions (W×D×H) | 440×621.5×175mm | |
| Weight (with 16×9Ah) | 55kg | 57kg |
General
| Specification | 6 kVA | 10 kVA |
|---|---|---|
| Noise | <45dB at 1m | <50dB at 1m |
| Rack Rail Depth | Adjustable 700–760mm | |
| Max Output Cord (EMC) | 10 metres | |
| Cable Sizing (all) | 6mm² | 10mm² |
| Cable Terminal | M4 crimped IT, torque 3N·m, hole 4.5mm | |
| Colour | Black | |

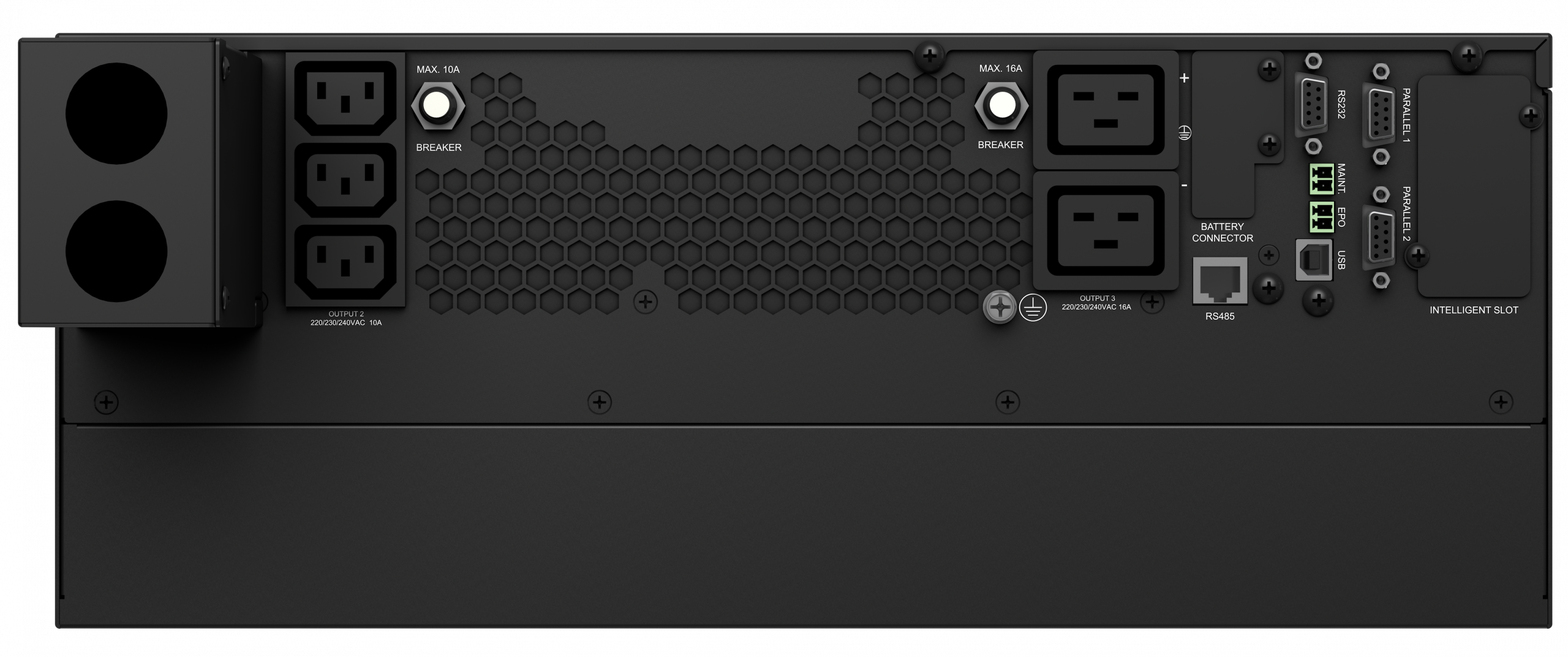

| Interface | Details |
|---|---|
| USB | Type-B USB port for KPower / UPSilon2000 monitoring |
| RS-232 | DB9 serial – cannot use with USB simultaneously |
| RS-485 | Built-in for Modbus RTU / multi-drop monitoring |
| Intelligent Slots | Dual intelligent slots – accepts TM220 SNMP, Modbus-TCP or relay card |
| EPO | Emergency Power Off connector |
| MAINT | Maintenance bypass sensor (dry-contact input) |
| BAT_T / BAT_N | Battery temperature / neutral sensor port |
| Parallel Ports | 2× parallel ports (up to 4 units, optional parallel kit) |
| Programmable Outputs | C19×2 + C13×3 (priority-based load shedding) |
| HW Terminal Output | L+N+G (non-programmable, always on) |
| Display | 2.4” LCD standard; 3.5” rotatable LCD/HMI optional |
| Optional | TM220 SNMP, Modbus-TCP, relay card, parallel kit, external battery cabinet, rack PDU and external bypass box |
Online Mode
| Load Level | Duration | Action |
|---|---|---|
| 105–110% | 60 minutes | Sustained, then transfer to bypass if overload continues |
| 110–125% | 10 minutes | Transfer to bypass |
| 125–150% | 1 minute | Transfer to bypass |
| >150% | 0.5 seconds | Transfer to bypass |
Battery Mode
| Load Level | Duration | Action |
|---|---|---|
| 105–110% | 10 minutes | Sustained on battery |
| 110–125% | 1 minute | Shutdown |
| 125–150% | 10 seconds | Shutdown |
| >150% | 0.5 seconds | Immediate shutdown |
Bypass Mode
| Load Level | Duration | Action |
|---|---|---|
| 105–130% | Continuous | Overload alarm only |
| 130–150% | 10 minutes | Shutdown |
| 150–200% | 1 minute | Shutdown |
| >200% | 0.5 seconds | Immediate shutdown |
| Parameter | Specification |
|---|---|
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | −25°C to 55°C |
| Humidity | 0–95% RH non-condensing (0–40°C) |
| Altitude (Full Load) | Full load below 1500 m; derating above 1500 m: 2000 m = 90%, 2500 m = 85%, 3000 m = 80% |
| Max Operating Altitude | 3000m |
| Protection Class | IP20 |
| Safety Standards | EN IEC 62040-1:2019 + A11:2021 |
| EMC Standards | IEC 62040-2:2016, EN IEC 62040-2:2018 |
| Performance | IEC/EN 62040-3 |
| Cooling | Forced air (fan) |
Heat Dissipation (Online VFI, PF 1.0)
| Model | 50% Load | 100% Load |
|---|---|---|
| 6 kVA | 158W | 316W |
| 10 kVA | 236W | 471W |
Recommended External Circuit Breakers
| Breaker | 6 kVA | 10 kVA |
|---|---|---|
| Input (1P) | 40A | 63A |
| Maintenance (1P) | 40A | 63A |
| Output (1P) | 40A | 63A |
| Battery (2P DC) | 50A | 63A |
Ideal For
Designed for rack-based IT, telecom, edge, security and industrial environments requiring PF 1.0 online power, zero-transfer operation and flexible communication and monitoring options.
Server Rooms & IT Racks
PF 1.0 online double-conversion protection for rack servers, network switches, storage arrays, firewalls and edge IT loads in small and medium server rooms.
Network & Telecom
Clean online power for routers, switches, telecom shelter electronics, access equipment and 5G network cabinets in server rooms and edge sites.
Healthcare Facility IT
Online UPS protection for healthcare facility IT, laboratory instruments, imaging support loads and monitoring infrastructure – subject to project electrical requirements.
Industrial Automation
Stable online power for PLCs, SCADA workstations, industrial PCs, automation controllers and precision manufacturing support loads.
Banking & Finance IT
Mission-critical UPS for ATM networks, branch banking IT, payment systems, trading-floor workstations and network infrastructure.
Security & Surveillance Racks
Online UPS protection for IP CCTV, NVRs, access-control panels, alarm systems and security network racks in commercial and edge installations.
Need Standard PF, Lithium or Tower Format?
Compare RM11E Elite with related ATENCO online UPS series: RM11E for standard PF 0.9 rack applications, RM11E PRO for LiFePO4 lithium systems, and TM11E Elite for PF 1.0 tower installations.
RM11E Elite FAQ
Common questions about RM11E Elite PF 1.0 rack UPS selection, battery options, lithium alternatives and related ATENCO online UPS series.
What is RM11E Elite?
What is the difference between RM11E and RM11E Elite?
Does RM11E Elite support lithium batteries?
What is the difference between RM11E Elite and RM11E PRO?
What is the difference between RM11E Elite and TM11E Elite?
Can RM11E Elite be installed as both rack and tower?
What applications is RM11E Elite best for?
Does RM11E Elite provide zero transfer time?
Does RM11E Elite support external battery cabinets?
Can RM11E Elite be used for long backup time?
Does RM11E Elite support SNMP monitoring?
Does RM11E Elite support parallel redundancy?
Is RM11E Elite suitable for healthcare facility loads?
When should I choose RM11E Elite instead of the LT1E line-interactive UPS?
Specify Your RM11E Elite
Rack UPS
Send us your load, runtime target, rack space and site voltage. ATENCO will size the suitable RM11E Elite 6 or 10 kVA model, recommend the 2U or 4U chassis configuration, confirm internal or external battery setup, and include SNMP, relay, parallel or maintenance bypass options in your project quotation.
