Online Tower UPS 1–10 kVA
True online double-conversion (VFI) tower UPS from 1 to 10 kVA. TM11E delivers pure sine wave output, 0 ms online transfer and wide input voltage range – 110–300 Vac for 1–3 kVA and 110–286 Vac for 6–10 kVA models. Designed for servers, network switches, telecom shelters, edge IT and small office loads, with internal 12V VRLA batteries on standard models and external TC-series tower cabinets for runtime extension. CE, EMC, LVD and IEC 62040 standards available by series.
Engineered for Reliability
Online double-conversion topology, internal VRLA batteries with external cabinet runtime extension and parallel-capable 6-10 kVA models built for server rooms, telecom shelters and small office IT environments.
True Online Double-Conversion
VFI topology with DSP digital control. 0 ms online transfer and pure sine wave output help isolate servers, network switches and edge IT loads from voltage sags, brownouts and blackouts.
High Input Power Factor
Input PF ≥0.99 with active PFC helps reduce upstream electrical stress and supports better compatibility with cables, breakers and generator systems on project sites.
Up to 93.5% Efficiency
High online-mode efficiency: up to 92.3% on 1-3 kVA models and up to 93.5% on 6-10 kVA models. ECO mode reaches up to 98% in stable utility environments to reduce operating cost.
Scalable Battery Runtime
Internal 12V VRLA batteries are available on standard models. External TC-series tower battery cabinets extend runtime by model/configuration, sized according to load and target backup time.
Parallel-Capable (6-10 kVA)
Parallel-capable 6-10 kVA models support up to 4 units in N+X configuration for capacity scaling and redundant power architecture, subject to model configuration and project design.
Advanced Monitoring
LCD/LED display with USB, RS-232 and EPO as standard. Optional SNMP, relay and RS-485 cards support remote monitoring and control-room integration: TM220 for 1-3 kVA, TM550 for 6-10 kVA.
Expand Your System
Optional accessories for runtime extension, remote monitoring and maintenance bypass support – available by model.

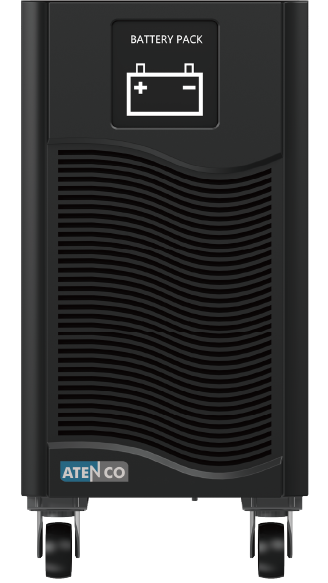

External Battery Cabinets
TC-series tower battery cabinets extend runtime for TM11E models by capacity group, sized according to load and target backup time.
SNMP Card TM220
(1–3 kVA)
Optional TM220 intelligent-slot card provides SNMP, web interface and email alert monitoring for TM11E 1-3 kVA models.
SNMP Card TM550
(6–10 kVA)
Optional TM550 intelligent-slot card provides SNMP, web interface and email alert monitoring for TM11E 6-10 kVA models.
Maintenance Bypass PDU
External maintenance bypass PDU supports UPS service or replacement while maintaining load supply, when installed according to procedure. Available by model.
Technical Details
Complete specifications for the TM11E 1–10 kVA series.
1–3 kVA Models
| Specification | 1 kVA | 2 kVA | 3 kVA |
|---|---|---|---|
| Full Name | TM11E Tower Online UPS | ||
| Topology | Online Double-Conversion (VFI), Transformer-less | ||
| Phase | 1P–1P (Single Phase In / Single Phase Out) | ||
| Form Factor | Tower | ||
| Capacity | 1000 VA / 900W | 2000 VA / 1800W | 3000 VA / 2700W |
| Output Power Factor | 0.9 standard | ||
| kVA Range | 1–10 | ||
| Operating Modes | NOR (Online), ECO, CF, GEN, Bypass, Battery | ||
| Standards | IEC/EN 62040-1, IEC/EN 62477-1, IEC/EN 62040-2 | ||
6–10 kVA Models
| Specification | 6 kVA | 10 kVA |
|---|---|---|
| Full Name | TM11E Tower Online UPS | |
| Topology | Online Double-Conversion (VFI), Transformer-less | |
| Phase | 1P–1P (Single Phase In / Single Phase Out) | |
| Form Factor | Tower | |
| Capacity | 6000 VA / 5400W | 10000 VA / 9000W |
| Output Power Factor | 0.9 standard (PF 1.0 available in TM11E Elite 6-10 kVA series) | |
| Operating Modes | NOR (Online), ECO, CF, PAL, Bypass, Battery | |
| Parallel | Up to 4 units (optional parallel card) | |
| Standards | IEC/EN 62040-1, IEC/EN 62477-1, IEC/EN 62040-2 | |
1–3 kVA Models
| Specification | 1 kVA | 2 kVA | 3 kVA |
|---|---|---|---|
| Input Voltage Range | 110–300Vac (full load 176–264Vac) | ||
| Input PF | ≥0.99 (Active PFC) | ||
| Input Frequency | 40–70Hz Auto-sensing | ||
| Output Voltage | 208/220/230/240Vac selectable, ±1% regulation | ||
| Output PF | 0.9 standard | ||
| Output Frequency | 46–54Hz or 56–64Hz (line); 50/60Hz ±0.1Hz (battery) | ||
| THDv | ≤3% linear / ≤5% non-linear | ||
| Transfer Time | 0ms (AC→Battery); 4ms (Inverter→Bypass) | ||
| Crest Factor | 3:1 | ||
| Efficiency (AC Mode) | 88% | 92% | 92% |
| Efficiency (Battery) | 85% | 88% | 89% |
6–10 kVA Models
| Specification | 6 kVA | 10 kVA |
|---|---|---|
| Input Voltage Range | 110–286Vac | |
| Input PF | ≥0.99 (Active PFC) | |
| Input Frequency | 40–70Hz Auto-sensing | |
| Output Voltage | 208/220/230/240Vac selectable, ±1% regulation | |
| Output PF | 0.9 standard (PF 1.0 available in TM11E Elite 6-10 kVA series) | |
| THDv | ≤2% linear / ≤5% non-linear | |
| Transfer Time | 0ms (AC→Battery); 0ms (Inverter→Bypass) | |
| Crest Factor | 3:1 | |
| Efficiency (AC Mode) | Up to 93.5% | |
| Bypass Breaker | 40A | 63A |
1–3 kVA Battery
| Specification | 1 kVA | 2 kVA | 3 kVA |
|---|---|---|---|
| Battery Type | 12V 9Ah VRLA (ATN1209) | ||
| Chemistry | Sealed Lead-Acid, Maintenance-Free | ||
| Battery Count (standard) | 2 pcs (24Vdc) or 3 pcs (36Vdc) | 4 pcs (48Vdc) or 6 pcs (72Vdc) | 6 pcs (72Vdc) or 8 pcs (96Vdc) |
| DC Bus Voltage | 24Vdc / 36Vdc | 48Vdc / 72Vdc | 72Vdc / 96Vdc |
| Recharge Time | 4 hours to 90% | ||
| Charging Current | S-model: 1.4A / L-model: up to 6A | ||
| Battery Life | 3–5 years at 25°C | ||
6–10 kVA Battery
| Specification | 6 kVA | 10 kVA |
|---|---|---|
| Battery Type | 12V 9Ah VRLA (ATN1209) | |
| Chemistry | Sealed Lead-Acid, Maintenance-Free | |
| DC Bus Voltage | ±96 / ±108 / ±120Vdc (settable via LCD) | |
| Battery Count | 16 / 18 / 20 blocks (S-model: 16 internal at ±96Vdc) | |
| Recharge Time | 6–8 hours to 90% (float); up to 20h boost | |
| Charging Current | 1.35A default; adjustable up to 10A via LCD | |
| Battery Self-Test | Auto every 30 days (10s, 10min, or to EOD) | |
| Battery Life | 3–5 years at 25°C | |
Compatible Battery Cabinets
1–3 kVA – TC Series (Tower Cabinets)
| Model | Type | Capacity | Voltage | Dims (W×D×H) | Weight |
|---|---|---|---|---|---|
| TC04024C | Tower | 4 blocks | 24Vdc | 270×556×340mm | 13.5kg |
| TC06036C | Tower | 6 blocks | 36Vdc | 270×556×340mm | 18.5kg |
| TC08048C | Tower | 8 blocks | 48Vdc | 375×733×510mm | 28.5kg |
| TC12072C | Tower | 12 blocks | 72Vdc | 375×733×510mm | 38.5kg |
| TC16096C | Tower | 16 blocks | 96Vdc | 375×733×510mm | 47.5kg |
6–10 kVA – TC40120N (Tower Cabinet)
| Model | Type | Capacity | Voltage | Dims (W×D×H) | Weight |
|---|---|---|---|---|---|
| TC40120N | Tower (wheels) | 40 blocks | ±120Vdc | 250×619×616mm | ~134kg w/9Ah |
1–3 kVA Models
| Specification | 1 kVA | 2 kVA | 3 kVA |
|---|---|---|---|
| Form Factor | Tower | ||
| Dimensions – xX9/S (W×D×H) | 144×293×209mm (24V) 144×399×209mm (36V) | 191×460×337mm | 191×460×337mm |
| Weight (xX9 / with battery) | 9.5kg / 12.5kg | 19kg / 24kg | 26kg |
| Weight (S / empty) | 4.5kg / 6kg | 10kg | 10kg |
| Noise | <50dB at 1m | ||
6–10 kVA Models
| Specification | 6 kVA | 10 kVA |
|---|---|---|
| Form Factor | Tower | |
| Dimensions – L head unit (W×D×H) | 191×460×337mm | |
| Dimensions – S with battery (W×D×H) | 191×460×720mm (with wheels) | |
| Weight (L head unit) | 12.5kg | 14kg |
| Weight (S with batteries) | ~70kg | ~71.5kg |
| Noise | <55dB at 1m | <58dB at 1m |

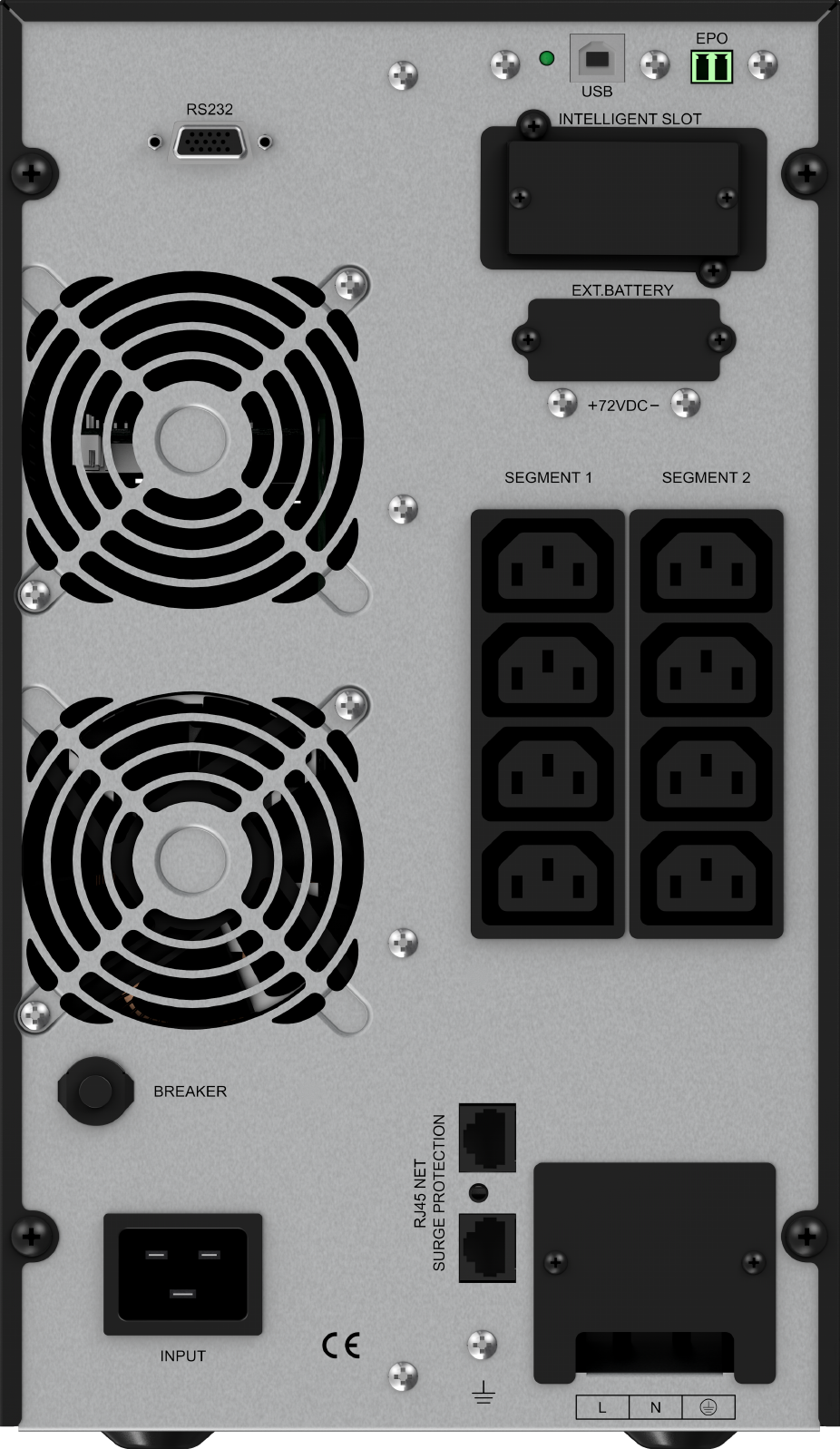

1–3 kVA Communication
| Interface | Details |
|---|---|
| USB | Type-B USB port for UPSilon2000 / KPower monitoring |
| RS-232 | DB9 serial (2400bps, 8N1) – cannot use with USB simultaneously |
| SNMP Card Slot | 1× intelligent slot – supports TM220 SNMP card |
| RJ45 Surge | Network/telephone surge protection pass-through |
| EPO | Emergency Power Off connector |
| Optional | Relay card (6 outputs + 1 input), external battery cabinets (TC series) |

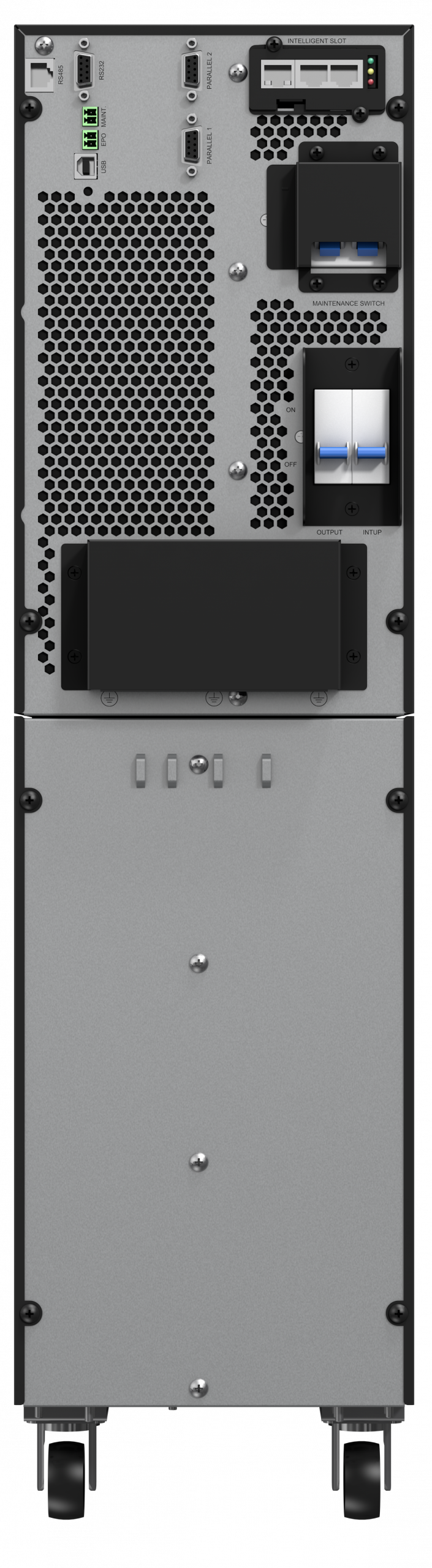

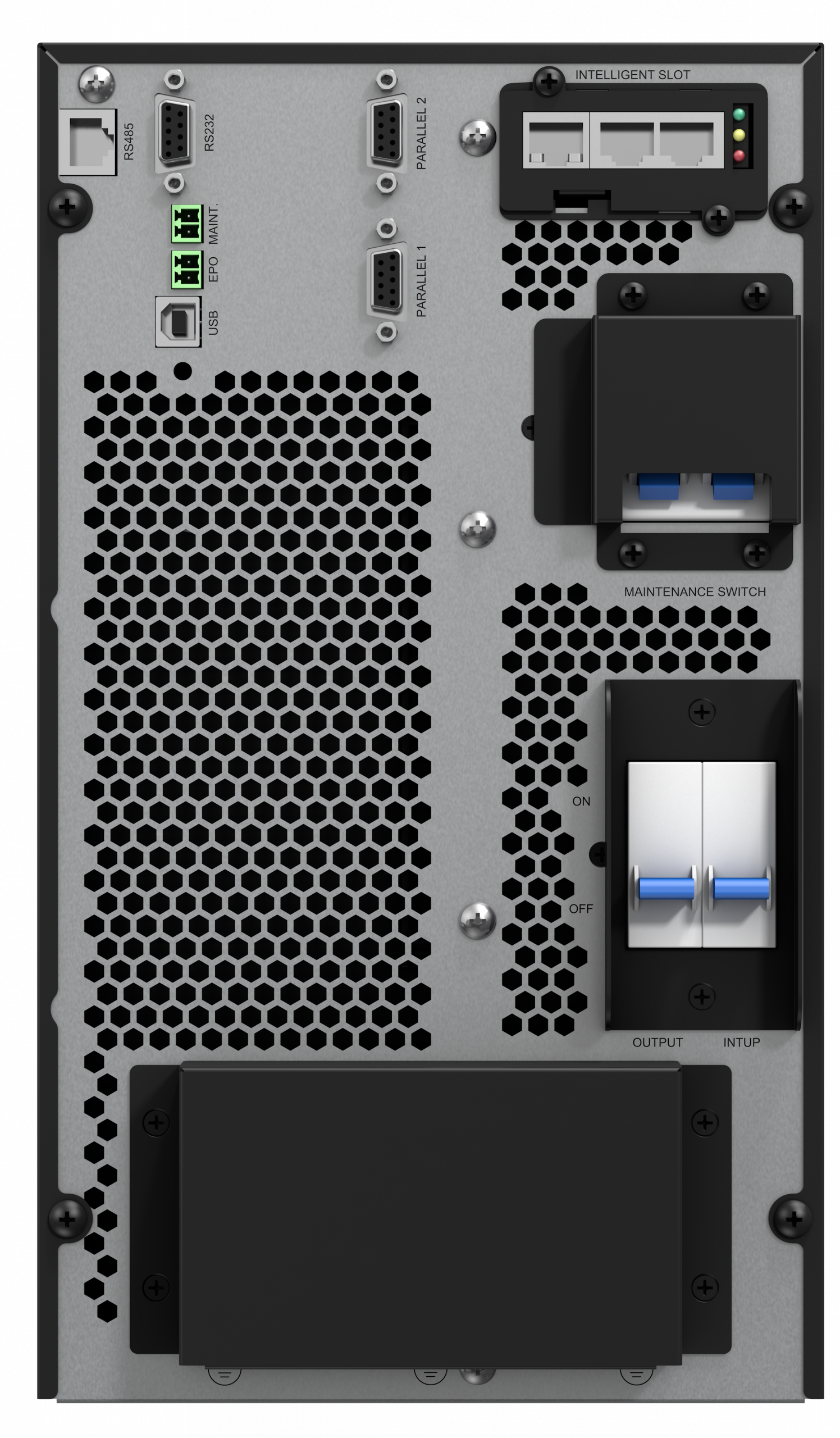

6–10 kVA Communication
| Interface | Details |
|---|---|
| USB | Type-B USB port for UPSilon2000 / KPower monitoring |
| RS-232 | DB9 serial (2400bps, 8N1) – cannot use with USB simultaneously |
| RS-485 | Built-in for multi-drop / Modbus monitoring |
| SNMP Card Slot | 1× intelligent slot – supports TM550 SNMP card |
| EPO | Emergency Power Off connector |
| Parallel Ports | 2× parallel ports (requires optional parallel card, up to 4 units) |
| Maintenance Bypass | Built-in maintenance bypass switch |
| Optional | Parallel card, Relay card, TC40120N external battery cabinet |
1–3 kVA – Overload Capacity (Line Mode, <35°C)
| Load Level | Duration | Action |
|---|---|---|
| ≤110% | 60 minutes | Sustained |
| ≤125% | 10 minutes | Transfer to bypass |
| ≤150% | 1 minute | Transfer to bypass |
| >150% | Immediate | Transfer to bypass |
6–10 kVA – Overload Capacity (PF 0.9, Line Mode)
| Load Level | Duration | Action |
|---|---|---|
| ≤110% | 60 minutes | Sustained |
| ≤125% | 10 minutes | Transfer to bypass |
| ≤150% | 1 minute | Transfer to bypass |
| >150% | Immediate | Transfer to bypass |
6–10 kVA – Overload Capacity (PF 1.0 Elite, Line Mode)
| Load Level | Duration | Action |
|---|---|---|
| ≤110% | 10 minutes | Transfer to bypass |
| ≤130% | 1 minute | Transfer to bypass |
| >130% | Immediate | Transfer to bypass |
Battery Mode (All Models)
| Load Level | Action |
|---|---|
| Any overload | Immediate shutdown |
| Parameter | Specification |
|---|---|
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | −25°C to 55°C |
| Humidity | 20–95% RH non-condensing |
| Altitude | <1500m full rated (derating above) |
| Safety Standards | IEC/EN 62040-1, IEC/EN 62477-1 |
| EMC Standards | IEC/EN 62040-2, IEC 61000 series |
| Leakage Current | Total UPS + loads must not exceed 3.5mA |
| Cooling | Forced air (fan) |
| Installation | Indoor use only |
Ideal For
Designed for tower-based IT, telecom, security, healthcare and small-office environments requiring zero-transfer online power and scalable VRLA runtime.
Server Rooms & IT
Online double-conversion protection for servers, network switches, storage arrays, firewalls and edge IT loads in small and medium server rooms.
Network & Telecom
Clean online power for routers, switches, telecom shelter electronics, access equipment and 5G network cabinets in server rooms and edge sites.
Office & IT Infrastructure
Online UPS protection for workstations, NAS, networking gear, POS terminals and peripherals in office and small-business environments.
Security & Surveillance
Online UPS backup for IP CCTV, NVRs, access-control panels, alarm systems and security network equipment.
Healthcare Facility IT
Online UPS protection for healthcare facility IT, laboratory instruments, imaging support loads and monitoring infrastructure – subject to project electrical requirements.
Industrial Automation
Stable online power for PLCs, SCADA workstations, industrial PCs, automation controllers and precision manufacturing support loads.
Need Higher PF, Rack Format or Three-Phase Power?
Compare TM11E with related ATENCO online UPS series – TM11E Elite for high-PF tower applications, RM11E for rack/tower convertible installations and TM33E for three-phase systems.
