PF 1.0 Elite Tower UPS 6–10 kVA
High-end online double-conversion VFI tower UPS for 6–10 kVA applications. TM11E Elite combines 3-Level IGBT technology, full DSP control, PF 1.0 output (kW = kVA), dual intelligent slots and up to 95.5% online efficiency. Designed for servers, network switches, telecom shelters, edge IT and small data-center loads, with CE, EMC, LVD and IEC 62040 standards available by series.
Engineered for Reliability
High-end online double-conversion topology, 3-Level IGBT inverter, dual intelligent slots and parallel-capable models for server rooms, telecom shelters and edge IT environments.
3-Level IGBT Topology
Online double-conversion VFI with 3-Level IGBT inverter and DSP control delivers PF 1.0 output, pure sine wave power and 0 ms online transfer for high power quality.
Up to 95.5% Efficiency
High online-mode efficiency: up to 95% on 6 kVA models and up to 95.5% on 10 kVA models. ECO mode reaches up to 98.8% on 6 kVA and up to 99% on 10 kVA in stable utility environments to reduce operating cost.
Dual Intelligent Slots
Two independent intelligent slots support optional TM550 SNMP/Modbus-TCP and relay communication options, giving more monitoring and signalling flexibility than single-slot models.
Scalable Battery Runtime
Internal 12V VRLA batteries are available on standard models. External TC-series tower battery cabinets extend runtime by model/configuration, sized according to load and target backup time.
Parallel-Capable Models
Parallel-capable 6 and 10 kVA models support up to 4 units for capacity scaling or N+X redundancy, subject to model configuration and project design.
Low-Noise Operation
Low-noise operation suitable for server rooms, offices and noise-sensitive environments; acoustic level depends on model and operating conditions.
Expand Your System
Optional accessories for runtime extension, remote monitoring and maintenance bypass support – available by model.
External Battery Cabinets
TC-series tower battery cabinets extend runtime for TM11E Elite 6-10 kVA models, sized according to load and target backup time.
SNMP Network Card
Optional TM550 intelligent-slot card provides SNMP, web interface and email alert monitoring for TM11E Elite 6-10 kVA models. Dual intelligent slots support flexible SNMP and relay card combinations for monitoring, signalling and BMS integration.

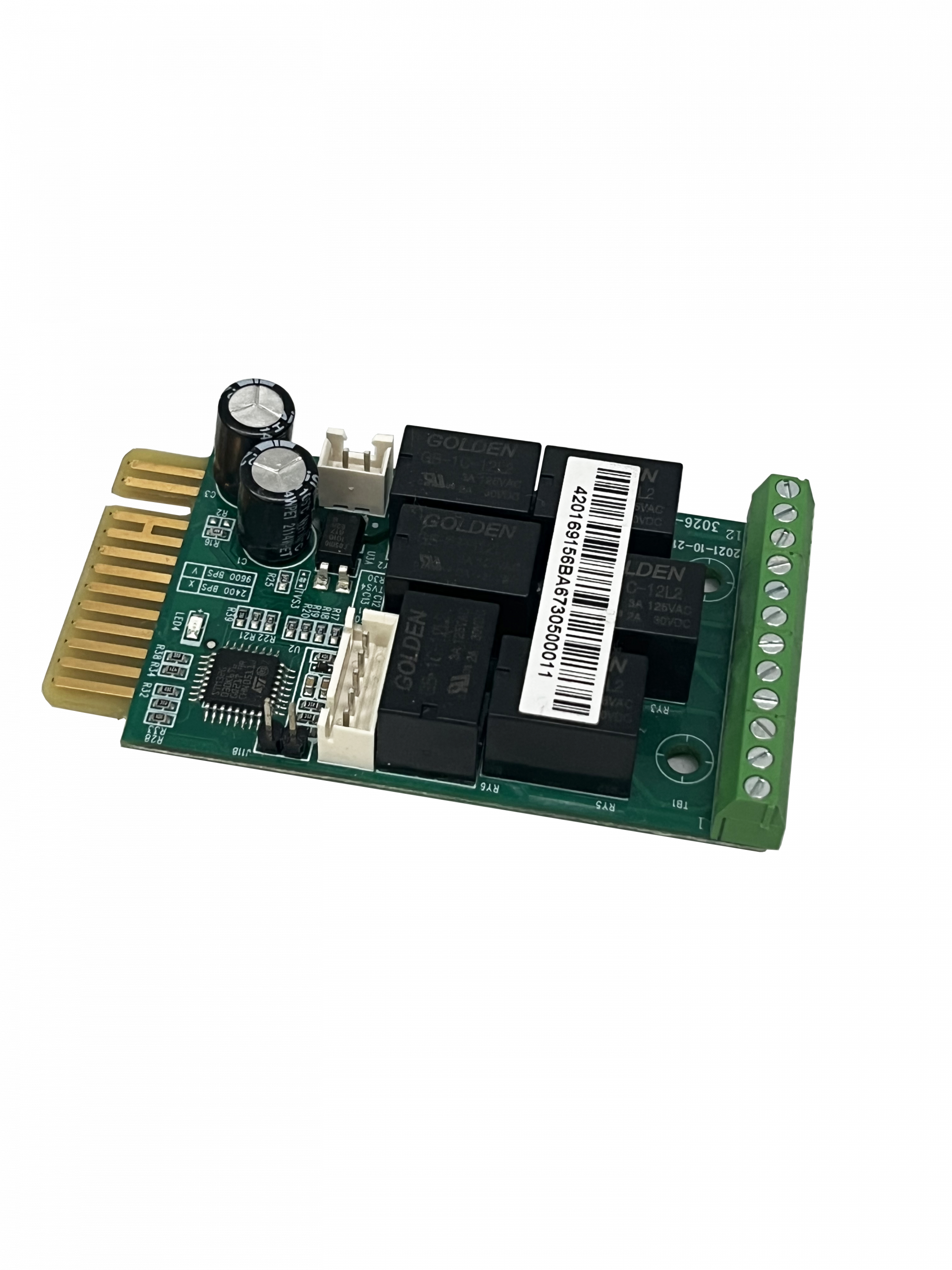

Relay Card
Dry contact output card with 6 output ports + 1 input for BMS and external monitoring integration via the second intelligent slot.
Maintenance Bypass PDU
External maintenance bypass PDU supports UPS service or replacement while maintaining load supply, when installed according to procedure. Available by model.
Technical Details
Complete specifications for the TM11E Elite 6–10 kVA series.
| Specification | 6 kVA | 10 kVA |
|---|---|---|
| Full Name | TM11E Elite Tower Online UPS | |
| Topology | Online Double-Conversion (VFI), 3-Level IGBT, Digital DSP | |
| Phase | 1P–1P (Single Phase In / Single Phase Out) | |
| Form Factor | Tower (wheeled) | |
| Capacity | 6000 VA / 6000W | 10000 VA / 10000W |
| Output Power Factor | 1.0 (kW = kVA) | |
| Display | LCD + LED (segment code screen) | |
| Operating Modes | NOR (Online), ECO, CF, GEN, PAL, Bypass, Battery | |
| Parallel | Up to 4 units (N+X redundancy, optional parallel kit) | |
| Intelligent Slots | 2× dual slots (TM550 SNMP and/or Relay card) | |
| Maintenance Bypass | Built-in (physical switch) | |
| Standards | EN IEC 62040-1:2019, IEC/EN 62040-2, IEC/EN 62040-3 | |
| Specification | 6 kVA | 10 kVA |
|---|---|---|
| Input Voltage Range | 110–300Vac (176–300V at 100% load; 110–176V at 50%) | |
| Input PF | >0.99 | |
| Input THDi | <3% | |
| Input Frequency | 40–70Hz | |
| Input Connection | Terminal (L+N+G) | |
| Output Voltage | 208/220/230/240Vac selectable, ±1% static / ±5% dynamic | |
| Output PF | 1.0 (kW = kVA) | |
| Output Connection | Terminal (L+N+G) | |
| Output Frequency (line) | 50/60Hz ±10% | |
| Output Frequency (battery) | 50/60Hz ±0.1% | |
| THDv | <1% linear / <3% non-linear | |
| Transfer Time | 0ms (AC→Battery); 0ms (Inverter→Bypass) | |
| Crest Factor | 3:1 | |
| Waveform | Pure Sinewave | |
| Efficiency (Online) | Up to 95% | Up to 95.5% |
| Efficiency (ECO) | Up to 98.8% | Up to 99% |
| Output Breaker | 40A | 63A |
| Specification | 6 kVA | 10 kVA |
|---|---|---|
| Battery Type | 12V VRLA (7Ah or 9Ah) | |
| Chemistry | Sealed Lead-Acid, Maintenance-Free | |
| Internal Battery (S model) | 36 × 12V/7Ah | 36 × 12V/9Ah |
| DC Bus Voltage | 216 Vdc nominal – 36 × 12V batteries (18 in series × 2 parallel strings) | |
| Max Charging Current | 8A | 10A |
| Recharge to 90% | 6–8 hours | |
| Battery Life | 3–5 years at 25°C | |
Compatible Battery Cabinet (L Models)

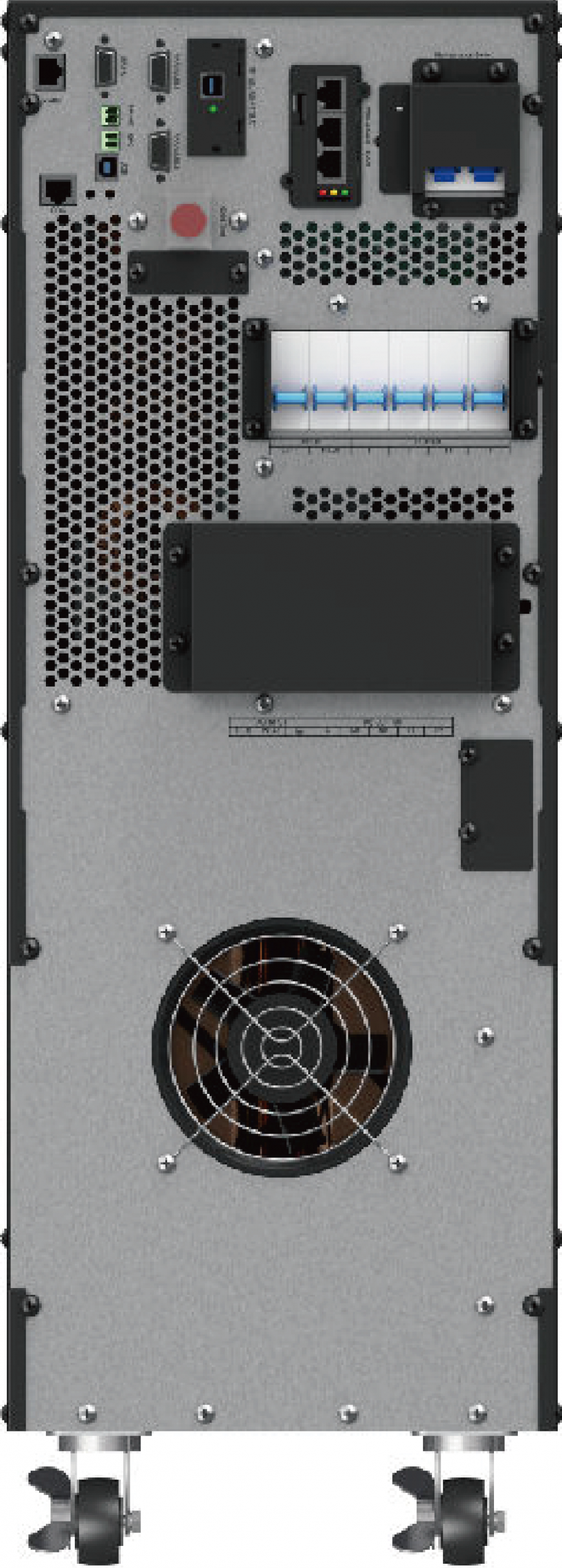

| Model | Type | Capacity | Voltage | Dims (W×D×H) | Weight |
|---|---|---|---|---|---|
| TC40120N | Tower (wheels) | 40 blocks | ±120Vdc | 250×619×616mm | ~134kg w/9Ah |
| Specification | 6 kVA | 10 kVA |
|---|---|---|
| Form Factor | Tower (with wheels) | |
| Dimensions (W×D×H) | 250×643×715mm | |
| Noise | ≤45dB at 1m | ≤50dB at 1m |
| Colour | Black | |
| Interface | Details |
|---|---|
| USB | Type-B USB port |
| RS-232 | DB9 serial |
| RS-485 | Built-in for Modbus RTU |
| Intelligent Slots | 2× dual slots – TM550 SNMP card and/or Relay card |
| EPO | Emergency Power Off connector |
| Maintenance Bypass | Built-in physical bypass switch |
| Parallel Ports | Optional (up to 4 units, parallel kit required) |
| Display | LCD + LED segment code screen |
| SNMP Card | TM550 (NOT TM220) |
| Optional | Parallel kit, Relay card, TC40120N battery cabinet |
Online Mode
| Load Level | Duration | Action |
|---|---|---|
| 105–110% | 60 minutes | Transfer to bypass |
| 110–125% | 10 minutes | Transfer to bypass |
| 125–150% | 1 minute | Transfer to bypass |
| >150% | 0.5 seconds | Transfer to bypass |
Battery Mode
| Load Level | Duration | Action |
|---|---|---|
| 105–110% | 10 minutes | Shutdown |
| 110–125% | 1 minute | Shutdown |
| 125–150% | 10 seconds | Shutdown |
| >150% | 0.5 seconds | Immediate shutdown |
Bypass Mode
| Load Level | Duration | Action |
|---|---|---|
| 105–130% | Continuous | Overload alarm only |
| 130–150% | 10 minutes | Shutdown |
| 150–200% | 1 minute | Shutdown |
| >200% | 0.5 seconds | Immediate shutdown |
| Parameter | Specification |
|---|---|
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | −25°C to 55°C |
| Humidity | 0–95% RH non-condensing |
| Altitude (Full Load) | <1000m – derating 1000–3000m |
| Protection Class | IP20 |
| Safety Standards | EN IEC 62040-1:2019 + A11:2021 |
| EMC Standards | IEC 62040-2:2016, EN IEC 62040-2:2018 |
| Cooling | Forced air (fan) |
Heat Dissipation (Online VFI, PF 1.0)
| Model | 50% Load | 100% Load |
|---|---|---|
| 6 kVA | 141W | 283W |
| 7 kVA | 165W | 330W |
| 8 kVA | 188W | 377W |
| 9 kVA | 212W | 424W |
| 10 kVA | 236W | 471W |
Ideal For
Designed for 6–10 kVA tower UPS projects requiring PF 1.0 output, 3-Level IGBT efficiency, low-noise operation and flexible dual-slot monitoring.
Server Rooms & IT
PF 1.0 online tower UPS protection for rack servers, storage arrays, network switches and firewalls where full usable kW output and clean sine wave power are required.
Network & Telecom
High-efficiency tower UPS for telecom shelters, routers, switches, access equipment and 5G edge cabinets requiring stable online power and extended battery runtime.
Office & IT Infrastructure
Low-noise 6–10 kVA tower UPS protection for office server rooms, NAS systems, network cabinets, POS systems and business-critical IT equipment.
Security & Surveillance
Online UPS backup for IP CCTV, NVRs, access-control panels, alarm systems and security network equipment where zero-transfer operation helps maintain continuous recording.
Healthcare Facility IT
PF 1.0 online UPS protection for healthcare facility IT, laboratory instruments, monitoring infrastructure and imaging support loads – subject to project electrical requirements.
Industrial Automation
3-Level IGBT online UPS support for PLCs, SCADA workstations, industrial PCs and automation controllers requiring stable output power and high-efficiency operation.
Need PF 0.9, Rack Format or Three-Phase Power?
Compare TM11E Elite with related ATENCO online UPS series – TM11E for PF 0.9 tower applications, RM11E Elite for PF 1.0 rack/tower installations and TM33E for three-phase power projects.
Specify Your TM11E Elite Tower UPS
with the Right Runtime
Send us your load, backup-time target, installation space and site voltage. ATENCO will recommend the correct TM11E Elite 6 or 10 kVA model, battery cabinet configuration, monitoring card, relay card and maintenance bypass option for your project quotation through our certified distributor network.
